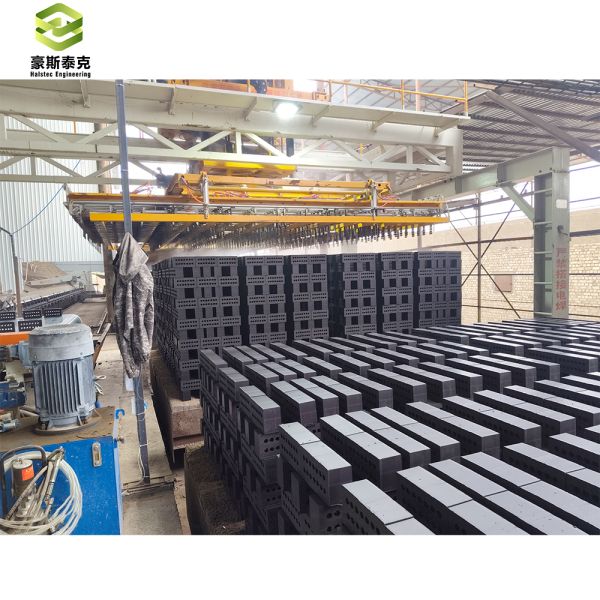

Product Description:
The frame stacking machine is a key piece of equipment in automated
brick production lines, specifically designed for high-efficiency
and high-stability brick stacking. This product adopts an advanced
frame structure, enabling fully automated brick stacking operations
from extrusion cutting to kiln car/drying car stacking,
significantly improving production efficiency and reducing labor
costs.
Automated Process:
Receiving Brick Blanks: Receives neatly cut green bricks from the
brick cutter.
Intelligent Recognition: Detects green brick specifications and
quality.
Precise Grip: Vacuum suction cups/mechanical grippers grasp the
green brick.
Positioning and Movement: Precise positioning in three-dimensional
space.
Optimized Stacking: Neatly stacks green brick according to a preset
pattern.
Circular Operation: Automatically returns to the next cycle.
Features:
Frame-type rigid structure: High overall stability and excellent
resistance to deformation.
Multi-axis precision control: Enables precise positioning and
stacking in three-dimensional space.
Modular design: Facilitates installation, maintenance, and
functional expansion.
Intelligent control system: Equipped with a visual user interface,
supporting multiple stacking modes.
Technical Parameters:
| Product Name | Automatic Frame Stacking Machine |
| Power | 20.4 |
| Capacity | 30000 Bricks Per Hour |
| Gripper | Customized |
| Warranty | 1 Year |
| Function | To Stack Bricks |
| Highlight | Auto, Brick Factory, Brick Machine, Brick Production |
| Certification | CE/ISO |
This Automatic Frame Stacking Machine is an ideal solution for your
brick plant for sale or clay brick manufacturing plant needs. It
enhances efficiency in brick production, making it a valuable asset
for any brick plant for sale.
Applications:
Applicable Industries:
Sintered brick production line
Autoclaved brick production line
Refractory material production line
Other building material production
Customization:
1. Customized Structure Services
① Customized Size
Working Range: Span adjusted according to kiln car/drying car
dimensions
Height: Adaptable to factory environments with different floor
heights
Foundation: Foundation designed and installed to match existing
workshop layout
② Customized Gripping Method
Vacuum Suction Cup: Suitable for solid bricks with flat surfaces
Mechanical Clamping: Suitable for porous bricks and hollow blocks
Composite Gripper: Vacuum + mechanical hybrid, adaptable to various
brick types
Specialized Fixtures: Specially designed for special
irregular-shaped bricks
2. Customized Control System
① Customized Automation Level
Basic: Manual + automatic modes, meeting basic automation needs
Standard: Fully automatic operation, equipped with a fault
diagnosis system
Intelligent: AI visual recognition, automatically adjusting
stacking parameters
Networked: Connects to the factory's MES system for intelligent
manufacturing
② Customized User Interface
Language: Supports multiple languages including Chinese, English,
Russian, Spanish, and Arabic
Interface Layout: UI design customized according to operating
habits
Access Control: Hierarchical password protection, traceable
operation records
3. Customized Functional Modules
① Detection Module
Brick Integrity Detection System
Automatic Thickness Measurement and Sorting
Humidity Detection and Alarm Function
②Stacking Modes
Standard Staggered Stacking
Parallel High-Efficiency Stacking
Custom Patterns (Customer-Specific Logo or Identification Pattern)
Mixed Brick Types Stacked in the Same Stack
③ Customized Safety Protection
Area Safety Light Curtain
Emergency Stop System
Anti-Collision Sensors
Remote Emergency Stop Button
Support and Services:
Our Robot Stacking Machine is designed to enhance your packaging
and logistics operations with precision and efficiency. For
technical support, please ensure that your machine is installed
according to the user manual and all safety guidelines are
followed.
We offer comprehensive technical support services including
installation assistance, routine maintenance, troubleshooting, and
repair services. Our team of experts is dedicated to helping you
maximize the performance and lifespan of your Robot Stacking
Machine.
To ensure optimal operation, regular software updates and hardware
inspections are recommended. We provide detailed documentation and
training materials to help your staff operate and maintain the
machine effectively.
In case of technical issues, please refer to the troubleshooting
section of the user guide before contacting support. Common issues
such as misalignment, sensor errors, or stack inconsistencies can
often be resolved by following the provided instructions.
For service and maintenance, we offer scheduled maintenance plans
tailored to your usage patterns, ensuring minimal downtime and
sustained productivity. Replacement parts and accessories are
available and can be ordered through authorized distributors.
Our commitment is to provide prompt and reliable technical support
to keep your Robot Stacking Machine running smoothly. Please have
your machine model and serial number ready when seeking assistance
to facilitate efficient service.
