Product Description:
The auto frame stacking machine is a core piece of equipment in
modern brickyard automated production lines. Designed to replace
traditional manual labor, it efficiently and accurately stacks
bricks cut from the cutter onto kiln or drying carts. Its unique
"whole-piece grabbing and whole-piece stacking" frame-type
operating principle makes it the preferred stacking solution for
medium- to large-volume brickyards due to its high stability,
efficiency, and low failure rate.

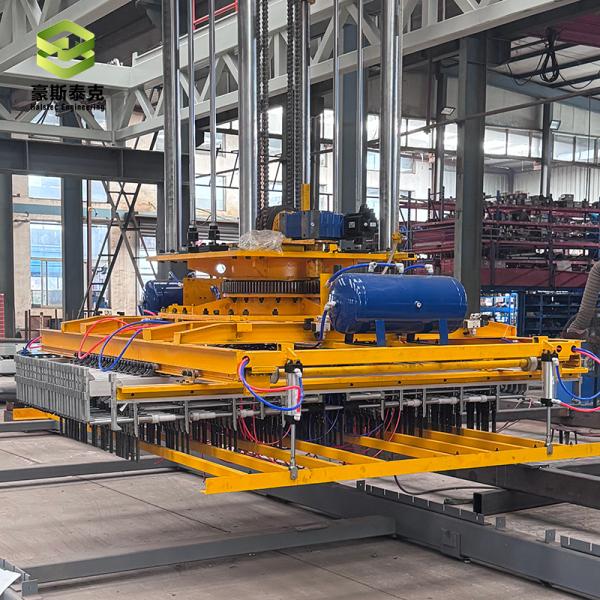

The equipment consists of a sturdy portal frame structure, a
three-dimensionally movable grabbing trolley (carriage), a lifting
mechanism, and a clamping head equipped with claws. During
operation, the clamping head descends to the grouping belt, and all
claws operate simultaneously to grab all the bricks on the cutting
table at once. The head is then lifted and moved horizontally above
the kiln car, where it descends again and releases the bricks as a
whole, stacking each layer according to the preset stacking
pattern. This cycle repeats until the entire kiln car is fully
stacked.
Features:
- Product Name: Automatic Frame Stacking Machine
- Capacity: 30000 Bricks Per Hour
- Highlight: Auto, Brick Factory, Brick Machine, Brick Production
- Gripper: Customized
- Certification: CE/ISO
Technical Parameters:
| Warranty | 1 Year |
| Function | To Stack Bricks |
| Capacity | 30000 Bricks Per Hour |
| Power | 20.4 |
| Certification | CE/ISO |
| Highlight | Auto, Brick Factory, Brick Machine, Brick Production |
| Gripper | Customized |
| Product Name | Automatic Frame Stacking Machine |
Applications:
-Automated production lines for newly built or renovated tunnel
kiln and rotary kiln brick factories.
-Suitable for producing sintered bricks from materials such as
clay, gangue, shale, fly ash, and silt.
-Combined with automatic brick cutters, marshaling systems, and
kiln car drive systems.
Customization:
Product Customization Services for the Frame Stacking Machine
Brand Name: Halstec
Model Number: MPJ3.6
Place of Origin: CHINA
Certification: CE/ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude in the container
Delivery Time: within 120 days
Payment Terms: L/C, T/T
Supply Ability: 1 sets per month
Capacity: 30000 Bricks Per Hour
Power: 20.4
Warranty: 1 Year
Product Name: Automatic Frame Stacking Machine
Support and Services:
The Automatic Frame Stacking Machine product comes with comprehensive Product Technical Support and
Services to assist users in setting up, maintaining, and
troubleshooting the machine. Our team of experts is available to
provide guidance on installation, operation, and any technical
issues that may arise.
